Connector
This connector uses pins of the same material as the thermocouple.
Select according to the thermocouple (element) to be used.
Products
Specifications

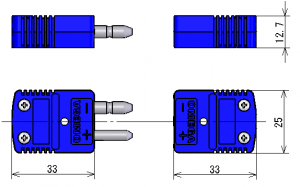

Standard Connector
Solid pin plug and socket are made of extension and compensating grade alloys which are housed in color-coded heat-resistance plastic shells. Select connector in accordance with the type of thermocouple to be used.
| Model number | Type of Thermocouple Used | Color (JIS) | Color (ASTM) |
|---|---|---|---|
| DL-K | K | Blue | Yellow |
| DL-J | J | Yellow | Black |
| DL-T | T | Brown | Blue |
| DL-E | Ｅ | Purple | Purple |
| DL-R | R | Black | Green |

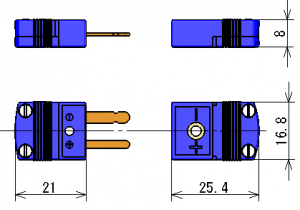

Miniature Connector
Except smaller flat bar plug is used, construction is similar to that of standard connector. Recommended for small size THERMIC up to 3.2mm O.D.
| Model number | Type of Thermocouple Used | Color (JIS) | Color (ASTM) |
|---|---|---|---|
| DS-K | K | Blue | Yellow |
| DS-J | Ｊ | Yellow | Black |
| DS-T | T | Brown | Blue |
| DS-E | E | Purple | Purple |
| DS-R | R | Black | Green |
