In thermal power generation, an application called a boiler is used to start a fire and boil water to generate steam, which is used to turn a turbine and rotate a generator connected to the turbine to produce electricity. Ash generated by incineration can accumulate inside the boiler. The deposits can interfere with efficient power generation and cause equipment failure.
Solution
Thermal imagers to monitor inside boiler（Boiler Spection）
- Pyrometers
- Electric Power
Features
Boiler Spection is a thermal imaging device for monitoring the inside of a boiler, which allows the user to see a wide range of conditions inside the boiler by inserting the lens into the boiler. The product enables real-time monitoring of deposits conditions and temperature distribution even over a flame, which is useful for efficient power generation and prevention of equipment failure.
 |
 |

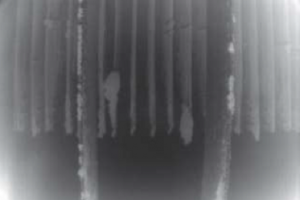

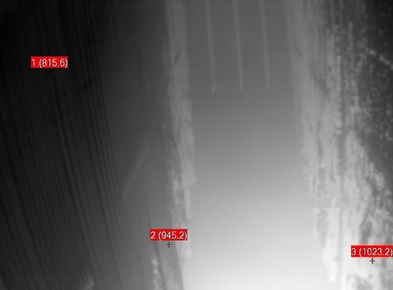

| Thermal Imaging system (BoilerSpection SD/MB) | Inside the boiler during operation (Check inside through flames) |
Features as a system
・Borescope lens incorporated into IR camera.
・Built-in cooling system for continuous monitoring to protect the unit.
・Data is sent to the control room via a switch cabinet that switches cameras in the field.
・Real-time monitoring is performed on a server located in the control room using an Ethernet connection.
・Historical data can be managed.
・Outputs HTML for remote monitoring to the web system on DCS.
