RTD (completed in May 2022)

The standard type and vibration-proof type temperature measuring resistors are built by connecting an internal conductor to a resistance element, attaching an insulation tube, and assembling them into a metal protection tube, ceramic protection tube, etc., and are excellent in stability and reproducibility with a simple structure.

Features

  1. It has a simple structure and is excellent in cost.
  2. Excellent stability and repeatability.

Applications

  • Electricity, gas
    • Fluid temperatures such as cooling water, water supply, drainage, and oil
    • Temperature of turbine casings, metals, bearings, etc.
    • LPG, LNG temp.
  • Electrical and electronic
    • Temperature of motor, transformer, coil of generator, insulating oil, etc.
    • Temperature during the manufacturing process of transistors, integrated circuits, electronic tubes, etc.
  • Chemical
    • Temperature of the reaction tower and reactor for gases and liquids
    • Component temperature of chemical mechanical equipment
    • Sulfidation temperature of rubber
    • Temperature of plastic extruders and molding machines
    • Temperature during the pharmaceutical pellet molding process
    • Temperature during the synthetic fiber manufacturing process
  • Food products
    • Temperature during refining sugar, meat, baking, confectionery, brewing and other food manufacturing processes

Specifications

Type PT100Ω　JPT100Ω
Lead Connection 2-wire　3-wire　4-wire
Number of Element Single　Double
Rated Current 0.5mA　1mA　2mA　5mA(JPT100 only)
Class JIS classes A and B
IEC A and B



Temperature classification Operating Temperature Range
L -200 to 100°C
M 0 to 250°C
H 0 to 400°C

Note 1: Indicate the working temperature when ordering.
*The above operating temperature range is our product temperature classification.

Standard Models

RE12 type Metal Protection Tube Type
RE13 type Metal Protection Tube Type (Screwed)

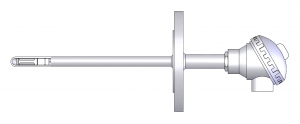

RE14 type Metal Protection Tube Type (Flanged)
