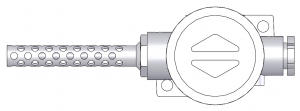

Metal sheathed resistance thermometer (RESIMIC®)

1. Fast response speed
   RESIMIC® resistor is a one-piece resistor element, an insulating material, and a metal-sheath, making it more responsive than a conventional protective-tube RTD.
2. Excellent bending properties
   Except for the end 100mm, which is the temperature-sensitive part, it can be bent with a radius at least twice the outer diameter of the sheathing.
3. Wide temperature measuring range
   Temperature can be measured from-200℃ to 500℃, depending on the ambient conditions.
   (Please consult us when using at operating temperature about 400℃ or higher.)

• Electricity, gas
  • Fluid temperatures such as cooling water, water supply, drainage, and oil
  • Temperature of turbine casings, metals, bearings, etc.
  • LPG, LNG temp.
• Electrical and electronic
  • Temperature of motor, transformer, coil of generator, insulating oil, etc.
  • Temperature during the manufacturing process of transistors, integrated circuits, electronic tubes, etc.
• Chemical
  • Temperature of the reaction tower and reactor for gases and liquids
  • Component temperature of chemical mechanical equipment
  • Sulfidation temperature of rubber
  • Temperature of plastic extruders and molding machines
  • Temperature during the pharmaceutical pellet molding process
  • Temperature during the synthetic fiber manufacturing process
• Food products
  • Temperature during refining sugar, meat, baking, confectionery, brewing and other food manufacturing processes

※For sheath outer diameters other than those listed above, contact CKD for further information.

※The above operating temperature range is our product temperature classification.
