Radiation thermometer Photrix Series

Product name

High-precision radiation thermometer



Model number

Photrix Series



This radiation thermometer realizes high-speed response, small spots, and high accuracy.
0.7~ Can be measured from a wide range of 1.65μm and a low temperature of 30℃. Suitable for temperature measurement of semiconductor materials in general, silicon wafers and metal surfaces.

Usage

  • This thermometer is suitable for temperature measurement of semiconductor materials in general, silicon wafers, and metal surfaces.

Features

  • 1msec responds quickly.
  • Small spots can be measured from φ0.5/50mm.
  • Measurements can be made from 30℃ bass.
  • The lens adopts a light pipe type, and it can also be used in narrow places where the field of view is missing.
  • The measuring area of the lenses is 50mm～2000mm.
  • It can be extended by optical fiber, so it can be measured in high temperature atmosphere or high frequency induction heating.
  • The light pipe type can be introduced into the vacuum by vacuum sealing.
  • The light pipe type has a compact design of φ25×115.
  • The addition of the barge function enables stable measurement.
  • The optional analogue outputs (4 to 20mA and 0 to 10V) are also available.
  • RS232 two-way communication function and measurement software support PC control.
  • Parameter setting, data logging, and graph display are possible using measurement software.

Specifications

■Lens type

Detection wavelength Temperature range
0.88μm 280 ～ 2150℃, 310 ～ 2600℃
0.90μm 270 ～ 2150℃, 300 ～ 2600℃
1.55μm 125 ～ 2600℃, 180 ～ 2600℃
0.70 ～ 1.65μm 65 ～ 1000℃, 135 ～ 2400℃

■Light pipe type

Detection wavelength Temperature range
0.88μm 220 ～ 1300℃
0.90μm 210 ～ 1300℃
1.55μm 70 ～ 1100℃
0.70 ～ 1.65μm 30 ～ 670℃

■Lens + fiber extension

Detection wavelength Temperature range
0.88μm 280 ～ 2150℃, 300 ～ 2500℃, 345 ～ 3600℃
0.90μm 280 ～ 2150℃, 300 ～ 2500℃, 345 ～ 3600℃
1.55μm 270 ～ 2150℃, 290 ～ 2500℃, 335 ～ 2600℃
0.70 ～ 1.65μm 65 ～ 1100℃, 80 ～ 1300℃, 115 ～ 2600℃

■Light pipe + fiber extension type

Detection wavelength Temperature range
0.88μm 250 ～ 1600℃, 265 ～ 1900℃、300 ～ 2600℃
0.90μm 240 ～ 1600℃, 255 ～ 1900℃, 290 ～ 2600℃
1.55μm 100 ～ 1800℃, 115 ～ 2400℃, 155 ～ 2600℃
0.70 ～ 1.65μm 60 ～ 900℃, 65 ～ 950℃, 100 ～ 1400℃

・The analogue signal can be selected from current DC4～20mA and voltagesignal DC0～10V.
・The interface is RS232.

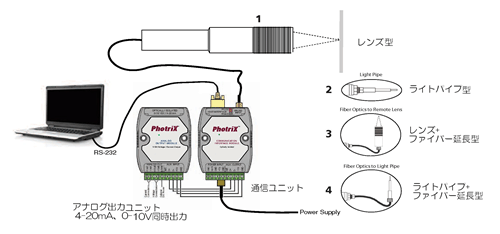

Basic system configuration diagram

Photrix Series

Accessories

■Standard accessories

Communication Interface (CIM)

Thermometer to CIM connecting cable (4m)

RS232 cable (3 m)

DC 12 V Power cable (AC 100 V)

Measurement Software TemperaSure



■Option

Right angle connector

Analogue output module. (AOM)4-20mA 0-10V simultaneous output)

Multi-Channel Interface (MCI)

Light pipe (custom specifications)
Please contact us.
