Thermal Image Camera MCS640

Product name

Thermal image camera



Model number

MCS640



MCS640 is a thermal image camera. A short wavelength is adopted, and measurement through a window is possible. Suitable for metalworking, temperature measurement of various metal surfaces, molds and filaments.

Usage

  • Temperature measurement of the mold, sealing temperature monitoring of the furnace door, temperature measurement of the paper take-up roll, and material deterioration monitoring

特 長

  • Small measuring objects such as electron beam filaments can also be measured. (Min. measuring diameter: φ8.4μm at 113mm)
  • High-speed phenomena can also be measured. (Measuring rate: 60Hz)
  • The number of measurement pixels is 640 x 480.
  • We offer a variety of lenses to suit your application, from wide-angle to telephoto.
  • Cooling is not required at ambient temperatures up to 50°C. Cooling-jacket (HD enclosure) allows installation up to ambient 100°C.
  • It supports high-speed Ethernet and transmits digital images in real time.
  • The following functions are provided in the software for measurement/analysis (for LumaSpec RT analyser(Windows):
    ・Real-time measurement
    ・Measurement point designation up to 32 points
    ・Time series, histogram, alarm display, 3D display, etc.
    ・Data-out to EXCEL
    ・Video File Output

Specifications

Temperature range MCS640/I1 600 ～ 1600℃、800 ～ 3000°C
MCS640/I5 600 ～ 1600℃、800 ～ 3000°C
MCS640/M 1100 ～ 1600°C
Detection wavelength MCS640/I1 0.85μm
MCS640/I5 0.78 ～ 1.08μm
MCS640/M 0.65μm

・Communicates with PC over Gigabit Ethernet (1000Mbit/sec).

Basic system configuration diagram

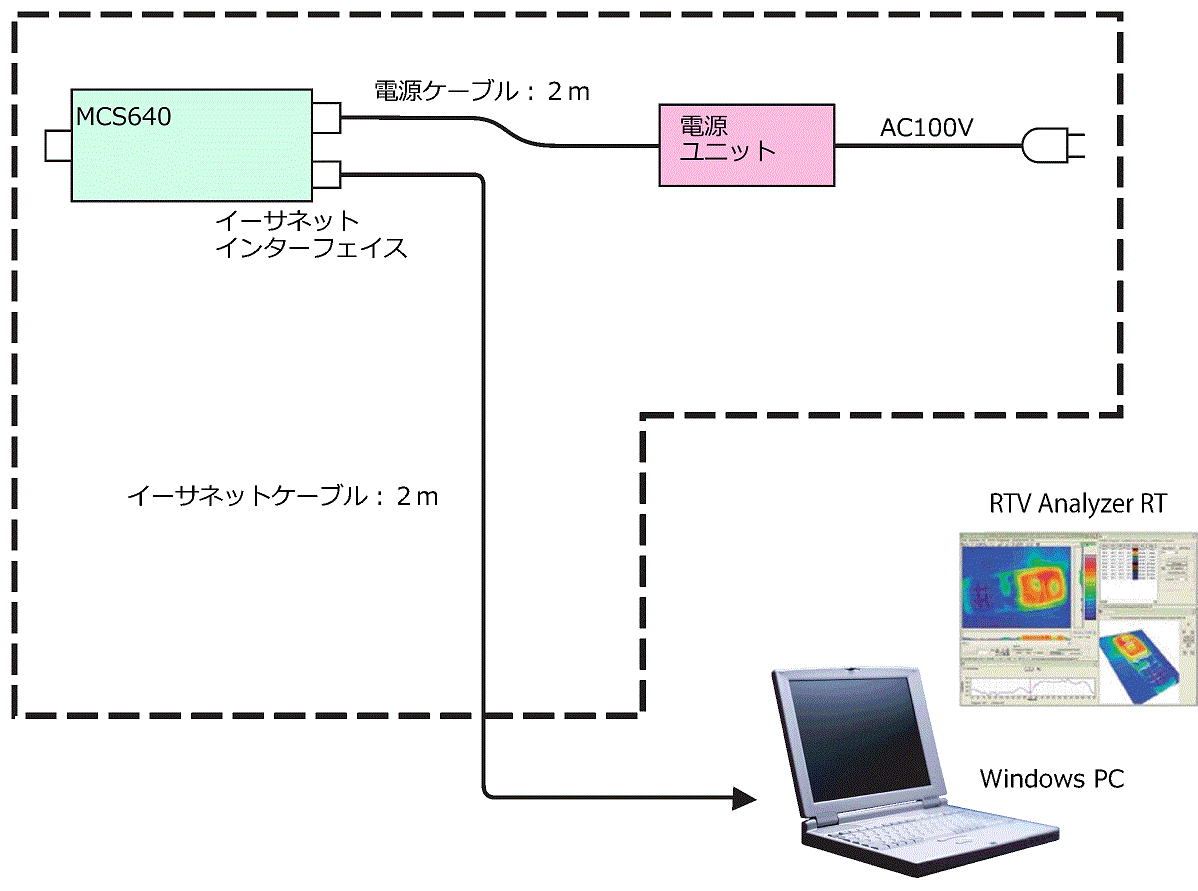

■Stand-alone system
This system performs measurement in real time.

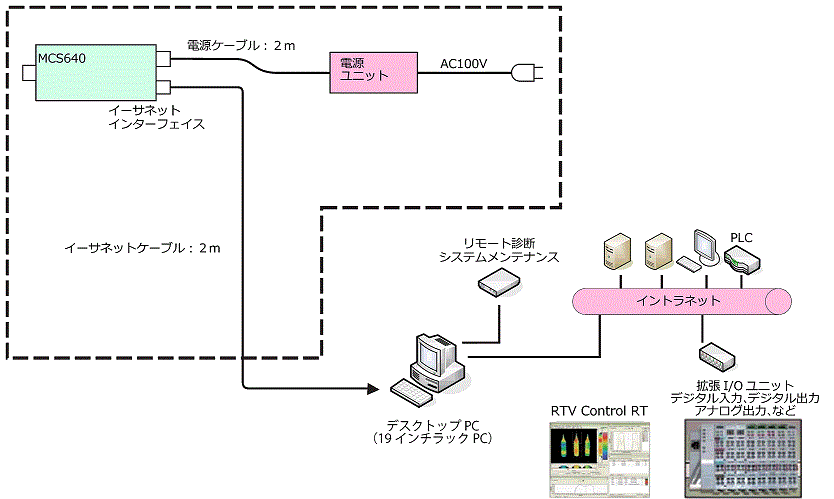

■Automatic control system
This system performs measurement in real time.

Accessories

3 835 490 Mounting bracket: For tripod

3 834 410 Fixing bracket: Angle adjustable (3 holes)
