Pipeline-type temperature-measuring resistors (RESISLIM)
This RTD is filled with high-purity alumina powder between a protection tube and a platinum resistance element.
Products
Features
- Temperature can be measured in a small area.
Temperature can be measured in a small area that cannot be measured with the sheathed RTD（RESIMIC®） - Fast response speed
Excellent as the sheathed RTD（RESIMIC®） - Wide temperature measuring range
As with the sheathed RTD（RESIMIC®）, it has a temperature measuring range from-200℃ to 650℃, depending on the ambient conditions.
Applications
- Electricity, gas
- Fluid temperatures such as cooling water, water supply, drainage, and oil
- Temperature of turbine casings, metals, bearings, etc.
- LPG, LNG temp.
- Electrical and electronic
- Temperature of motor, transformer, coil of generator, insulating oil, etc.
- Temperature during the manufacturing process of transistors, integrated circuits, electronic tubes, etc.
- Chemical
- Temperature of the reaction tower and reactor for gases and liquids
- Component temperature of chemical mechanical equipment
- Sulfidation temperature of rubber
- Temperature of plastic extruders and molding machines
- Temperature during the pharmaceutical pellet molding process
- Temperature during the synthetic fiber manufacturing process
- Food products
- Temperature during refining sugar, meat, baking, confectionery, brewing and other food manufacturing processes
Specifications
| Type | PT100Ω JPT100Ω |
|---|---|
| Sheath outer diameter(mm) | φ1.0 φ1.2 φ1.6 φ2.0 φ2.5 φ3.2 φ4.0 φ4.8 φ6.4 φ8.0 |
| Lead Connection | 2-wire 3-wire 4-wire |
| Number of Element | Single Double |
| Rated Current | 0.5mA 1mA 2mA 5mA(JPT100 only) |
| Class | JIS classes A and B IEC A and B |
| Temperature classification | Operating Temperature Range |
|---|---|
| M | -200 ~ 250°C |
| H | 0 ~ 650°C |
※The above operating temperature range is our product temperature classification.
Note 1: Indicate the working temperature when ordering.
Note 2: JPT100 up to 500℃.
Standard Models
| RSB type | Flexible Lead Type |  |
|---|---|---|
| RSES(L) type | Metal Connector Type |  |
| RSH type | Terminal Head Type |  |
| RSN type | Screwed-in Plain Nipple Type |  |
| RSNF type | Flange (Ferrule) Type |  |

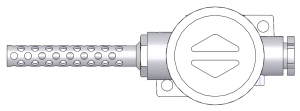

| RSP type | Wall-hanging Type (for room temp.) |  |
