Furnace Outlet Gas Temperature Measuring System FEGT

1. • Monitoring CO2 gas temperature at the outlet of boilers and furnaces

1. • Built-in radiation thermometer IPE140/45
     ・Measuring wavelength: CO2　absorbing wavelength, movable focal lenses, measuring distance: up to 8m
   • Main body features
     ・Main body cooled by Voltex cooler
     ・CaF2 windows, replaceable
     ・Use ball flange
     ・Maintenance is possible even when the boiler is in operation
   • • Effect of system introduction
     ・By measuring the temperature at the place where ash melts, the amount of slag and deposits are reduced.
     ・Optimize the flow of heat by measuring the gas temperature in various process conditions.
     ・Quantify the trade-off between heat production and NOx and SO2 release.
     ・Allows you to set an alarm trigger to determine the timing at which soot blowing starts.
     ・Minimize soot blowing to extend pendant life.

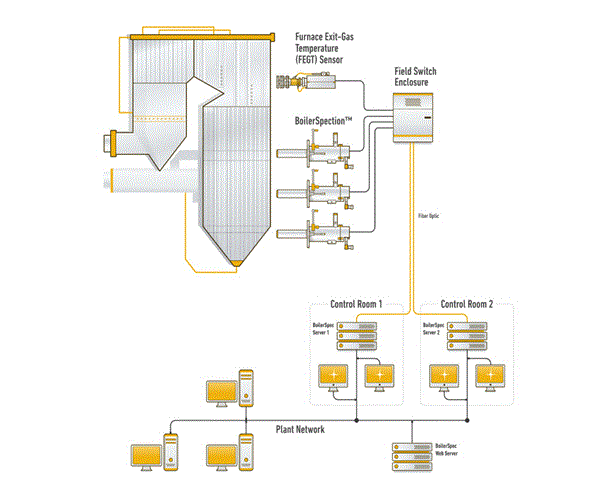

   • •Combined with BoilerSpection, it visualizes the inside of the oven.
     ・Monitoring the furnace temperature continuously eliminates failures.
     ・This reduces the fuel consumption of the boiler and contributes to energy saving.

■Pyrometer body
