Radiation thermometer IN300

Product name

2-wire compact radiation thermometer



Model number

IN300
(Markets of IN300/5 have been terminated.)



IN300 Series is a two-wire digital-radiation thermometer. Compact design, ideal for installation in equipment.
The 300 series enables temperature measurement of a wide variety of materials, including food, plastic, and glass surfaces.

Usage

    • Compact and low cost. Ideal for device integration applications.
    • IN300: Ideal for temperature measurement of food, print, plastic/rubber/paper.
    • A wide variety of accessories can be used for each application.

Features

    • This is a functional circuit device using 2-wire technology.
    • The main unit is made of SUS, so it can be used in harsh conditions on site.
    • Ambient temperatures up to 70℃ are supported.

Specifications

Temperature range IN300 0 ～ 100℃, 0 ～ 200℃, -20 ～ 300℃, 0 ～ 500℃, 0 ～ 600℃
Detection wavelength IN300 8 ～ 14μm

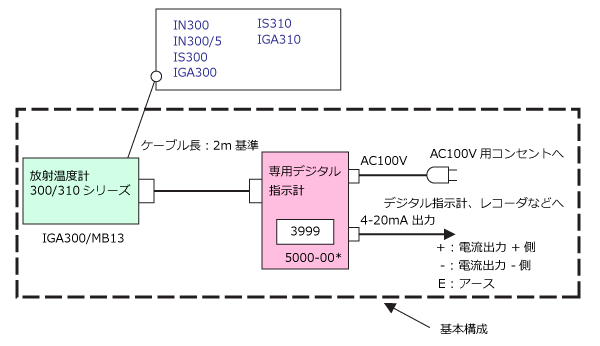

Basic system configuration diagram

300/310 Series

Accessories

3834-230 Mounting bracket

33835-220 Air-purge tube short cylinder type

3835-180 Air purge pipe

3835-240 Air purge pipe 90°

3837-160 Water cooled tube with purge
3837-270 With purged water-cooled tube ZnSe windows

3846-190 Flanged purge protection tube

3827-070 Laser pilot light

3827-100 Twin laser pilot



Please click here for inquiry about radiation thermometer IN300.



List of Radiation thermometer and thermal image
