Radiation thermometer IN5

Product name

2-wire digital radiation thermometer

Model number

IN5

IN5 is a two-wire digital-radiation thermometer.
With a detection wavelength of 8 to 14μm, temperature measurement of a wide variety of materials other than non-metallic surfaces is possible.

Usage

- Ideal for measuring the temperature of non-metallic or coated surface metals and oxidized surface metals.
  Plastics/rubber, paper, textile, ceramics, wood, fluids, liquids and adhesives, asphalt and building materials, and food products

Features

- IN5 is a popular radiation thermometer of IN5+ series. It is a perfect digital system.
- The digitalization of the internal circuit improves the accuracy by 40% compared with the previous analog circuit method.

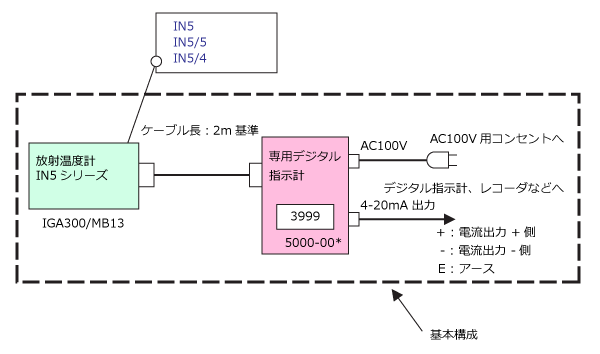

- Because of the two-wire type, the power supply and instruction meter circuit is simplified.
- Compact and low cost. Ideal for device integration applications.
- Response-speed can be set up to the fastest 80msec～5msec.
- The spot-size is at least φ2.0mm.

Specifications

The position can be checked using the laser beam or direct-view finder. (Specified when ordering)

Temperature range	0 ～ 100℃, 0 ～ 200℃, 0 ～ 300℃, 0 ～ 400℃, 0 ～ 500℃, 0 ～ 900℃, -32 ～ 50℃
Detection wavelength	8 ～ 14μm

・Analogue output can be selected from current 0/4～20mA, voltage0 to 5V, and thermocouple J/K compatible output.
・The scaling function of the minimum 50°C width enables replacement with the conventional model.
・The interface can also be switched to a RS485 with RS232 and bus-connectivity.
