Radiation thermometer IS50-LO/GL

Product name

Fiber-optic 2-wire radiation thermometer

Model number

IS50-LO/GL

IS50-LO/GL is a fiber-optic two-wire radiation thermometer.
0.8~ With a detection wavelength of 1.1μm, it is suitable for glass melting and temperature measurement in incinerators.

Usage

- Ideal for measuring temperatures for glass melting and incinerators.
- Low cost and small size make it possible to introduce it as a substitute for thermocouples.

Features

- Response-time is 250msec.
- Optical fiber cable 5m with heat resistance of 250°C are available. (maximum 30m)

Specifications

Temperature range	600 ～ 1800°C
Detection wavelength	0.8 ～ 1.1μm

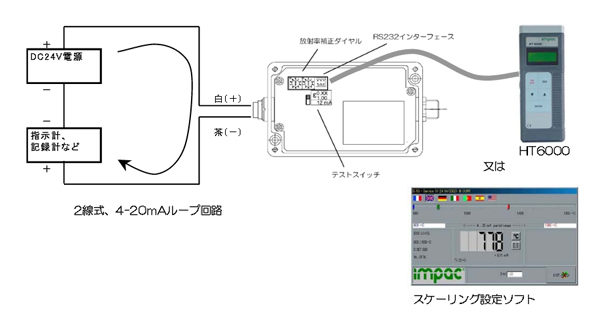

・The analogue output is a two-wire DC4～20mA current loop.
・The scaling function of the minimum 50°C width enables replacement with the conventional model.
・The interface can also be switched to a RS485 with RS232 and bus-connectivity.
