Digital Two-Color Radiation Thermometer ISR320

Product name

Digital two-color radiation thermometer

Model number

ISR320

The Digital Two-Color Radiation Thermometer ISR320 is compact, lightweight and easy to install in limited spaces.

Usage

- Temperature measurement of low emissivity objects
- Temperature measurement in vacuum furnace over window glass
- Temperature measurement of fast moving objects
- Molten metal surface temperature measurement
- Temperature measurement of micro-objects

Features

- Small size, light weight and easy to install in limited space
- Small spot measurement: from φ3 mm/300 mm
- High-speed measuring: 10msec
- High accuracy: 0.5% + 1°C (1300°C)
- Analogue output is 0 to 20mA or 4 to 20mA current output
  Can be connected to standard instrument
- Alarm contact output possible: for temperature monitoring and window material contamination monitoring
- LED target light allows easy confirmation of measuring position
  Enables ON/OFF even during measuring
- Wide range: Easy to replace conventional models with minimum 50°C wide scaling function
- RS485 interface enables long-distance communication with PC and PLC
- A RS485-USB converter is available for connecting to PC.
  Data recording and parameter setting with the measurement software supplied with the transmitter
- RS485 interface for easy multi-point measuring
- Application
  ・Metal Fabrication
  ・Semiconductor manufacturing process
  ・Glass mold
  ・Ceramic
  ・Dissolved metal
  ・Forging
  ・In a vacuum furnace

Specifications

Temperature range	MB 7	700 ～ 1700°C
Detection wavelength	0.9 ～ 1.05μm

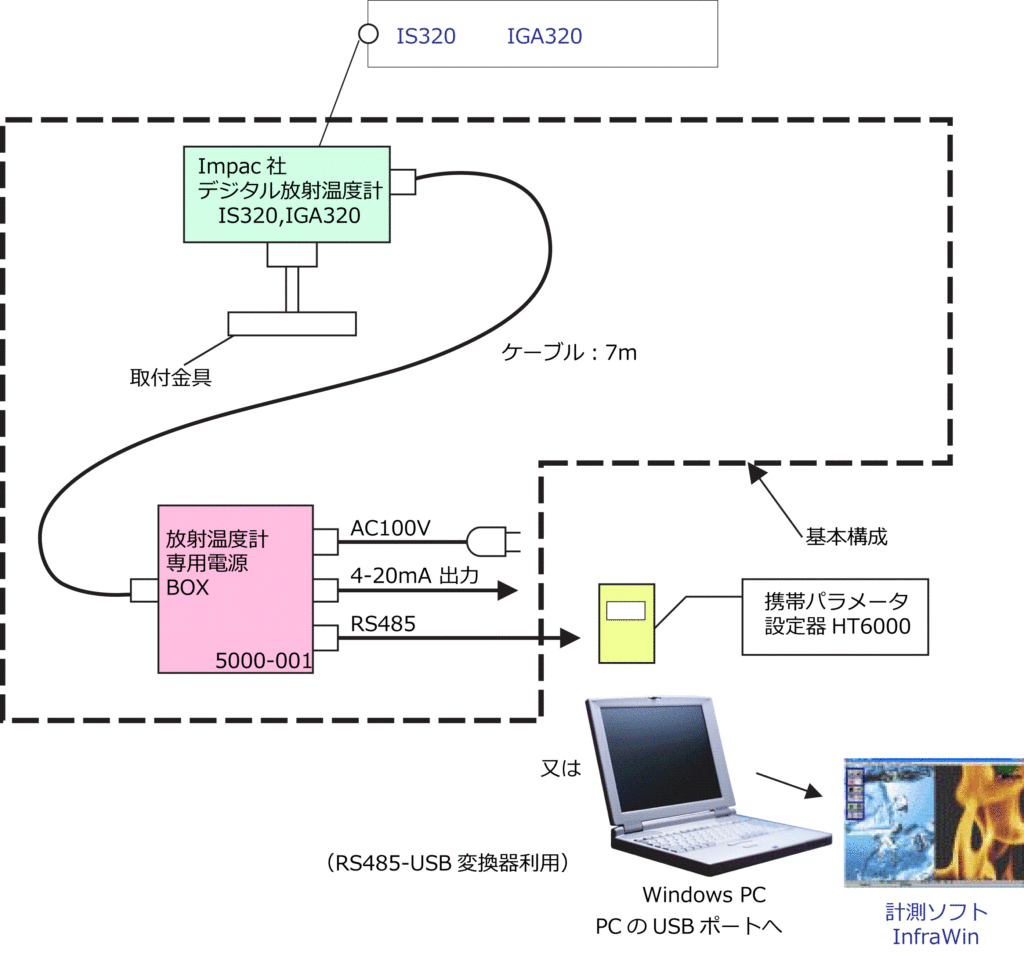

Basic system configuration diagram

Accessories

3834-230 Mounting bracket

3843-460 Scanning attachment SCA 300

3835-290 Air purge for scanning attachment

3835-180 Air purge

3835-240 For 90° mirror (with air purge) Type II

3826-510 LED Digital-Display DA 6000

3835-290/3890-290 Various power sources
NG 2D power supply /NG DC power supply

3826-720 RS485 ⇔ USB converter

PID programmable controller PI 6000

Connecting cable 2m (with straight connector);3920-030
Connecting cable 5m (with straight connector);3920-040
Connecting-cable 2m (with L-shaped connector);3920-130
Connecting-cable 5m (with L-shaped connector);3920-140
※Connecting cables are available in 5m up to 30m.

■Dedicated power BOX5000-001+ USB for radiation thermometer

- All cables are included.
- Easy wiring work due to connector connection
- With laser pilot light switch
- The case is made of aluminum diecast and has outstanding durability!
- Includes a RS485-USB converter for connecting PC’s USB port.
