Sapphire Glass Temperature Measurement IN5/9+

Product name

Sapphire glass temperature measurement

Model number

IN5/9+

Sapphire glass temperature measurement IN5/9+ is digital circuit with high accuracy and stability free temperature range scaling with digital circuit.

Usage

- Sapphire glass temperature measurement

Features

- Response time: 180msec
- Small spots: φ1.7㎜/95㎜
- High accuracy: 0.6％℃ of measured value
- Wide range:
  Minimum 50℃ Width Scaling Function Easy to Replace Conventional Models
- Position check: Laser pilot light for easy location confirmation
- High accuracy and stability with digital circuitry
  Free temperature range scaling
- DC4～20mA power without a separate transducer
  RS232 or RS485 communication function
- Built-in Maximum Value Holding Circuit: for measuring moving objects
- Compact design of φ50 x 115mm, body material uses SUS
- Data recording and parameter setting with the dedicated measurement software attached as standard
- Application
  　・Sapphire wafer
  　・Sapphire glass

Specifications

Temperature range	0 ～ 1500℃
Detection wavelength	8 ～ 9.7μｍ

Basic system configuration diagram

Accessories

■Mounting bracket/purge pipe/protection pipe/flange/cooling jacket/scanner

3834-210 L shaped fittings

3835-160 Air purge unit

3846-620 For vacuum-furnace, with CaF2 window

3846-120 Ceramic protection tube with flange

3846-100 Purge protection tube

3837-370 Cooling jacket with purge
Ambient temperature: 250℃

5000-2001 JIS flange (as specified) with air purge

3843-500 Scanner SCA5, with CaF2 window

3820-330 Connecting-cable 5m with straight-type connector (in addition, 10m/15m/20m/25m/30m)

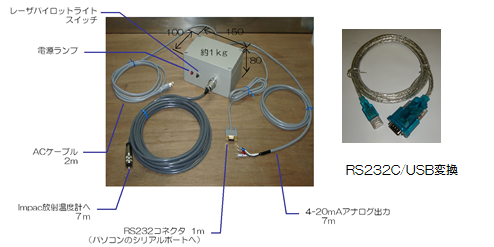

■Dedicated power BOX5000-001+ USB for radiation thermometer

- All cables are included.
- Easy wiring work due to connector connection
- With laser pilot light switch
- The case is made of aluminum diecast and has outstanding durability!
- Includes a RS485-USB converter for connecting PC’s USB port.
